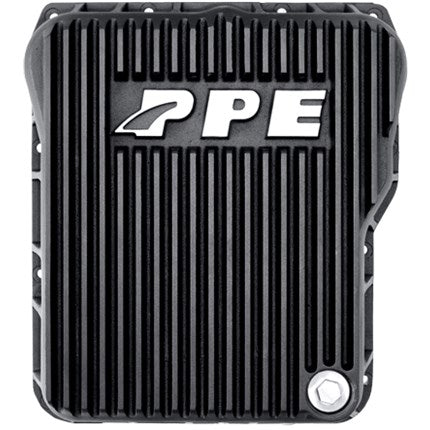

PPE Deep Pan Allison Transmission 2001-2019 Duramax (Black)

  • Sale
  • Regular price $350.99

Simply stated, more is always better when it comes to transmission fluid. A higher volume of fluid takes longer to heat up, allowing for lower, more stable transmission temperatures and extending your transmission life.

Cast from high-quality A356-T6 heat-treated aluminum for strength, PPE’s Heavy-Duty Deep Allison Transmission Pan holds 4 quarts of extra transmission fluid. Tall 1-inch internal and 3/4-inch external cooling fins further help with heat dissipation, allowing for up to 40 degrees F reduction in operating temperatures.

The PPE Heavy-Duty DEEP Aluminum Transmission Pan also features a high-powered Neodymium- magnet-equipped drain plug to keep harmful ferrous metal contaminants out of the transmission internals.


  • High-grade A356.0-T6 heat-treated cast aluminum alloy
  • Increases fluid capacity by 4 quarts
  • External cooling fins measure 6.25 inches from the gasket face

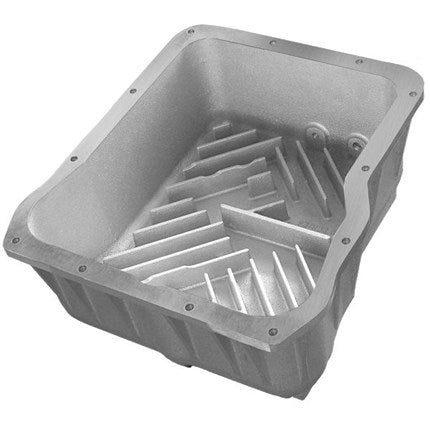

  • Internal heat sinks reduce transmission fluid temp, reduce fluid sloshing
  • Gussets and thick flange provide extra strength and robustness

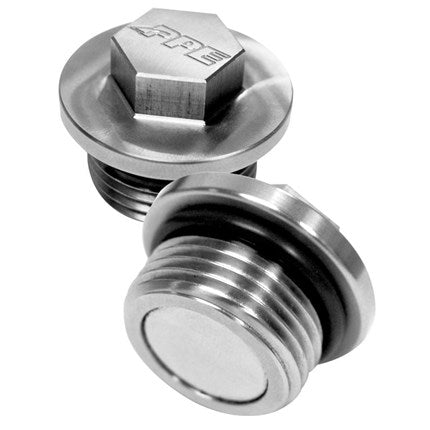

  • High-power neodymium magnet equipped billet stainless steel plug with Viton O-ring
  • Drilled and threaded 1/8-inch and 1/4-inch NPT ports for optional temperature probes
  • Compatible with OEM gasket
  • Built-in Filter Lock keeps filter securely in place
  • Limited lifetime warranty
