Axiom Supply Arctic Cat / Textron Wildcat XX Lifetime Warranty Wheel Bearing 4 Pack 2018 - 2025

Complete Front & Rear Wheel Bearing Kit

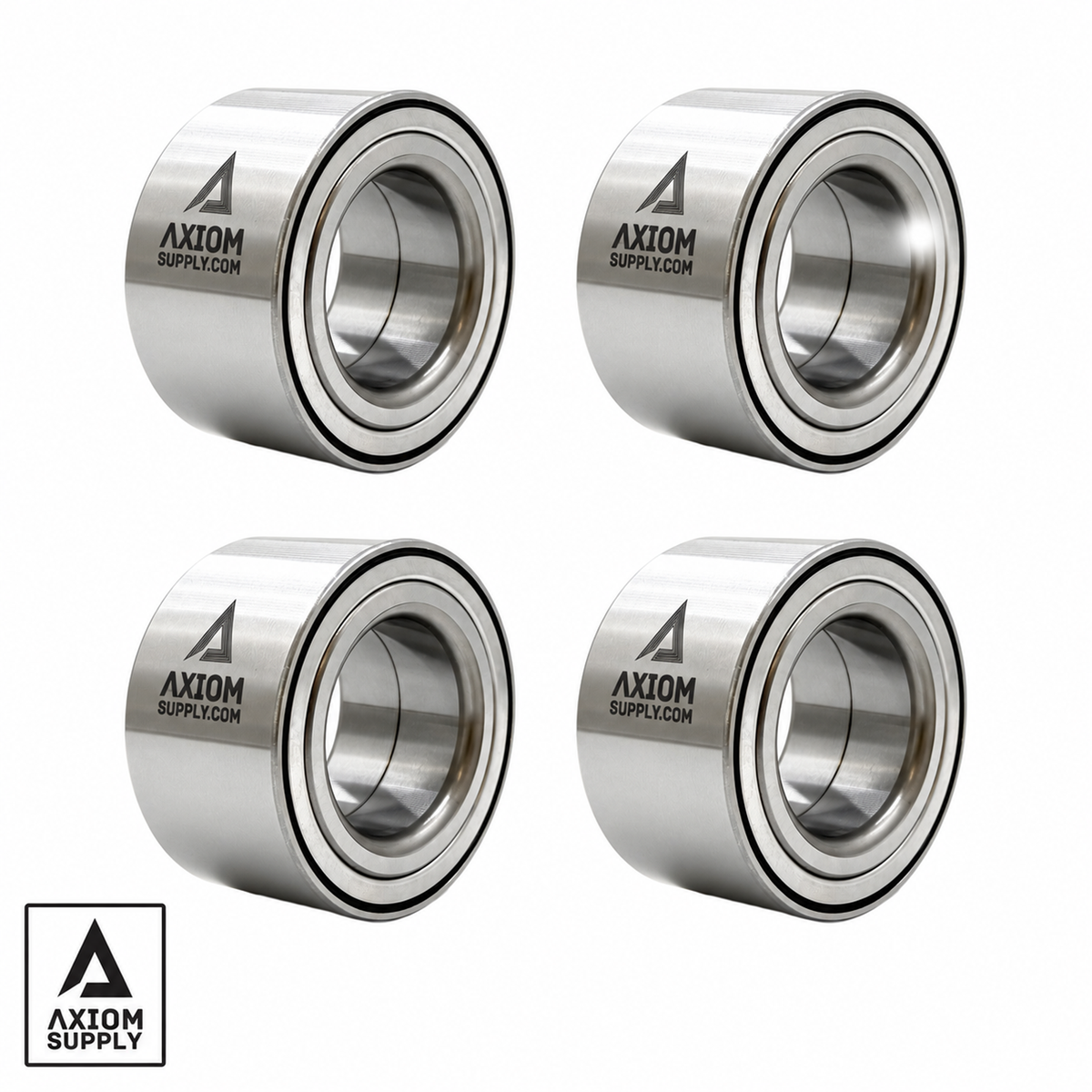

The Axiom Supply AXACBR50-4 Lifetime Warranty Wheel Bearing 4-Pack provides a complete wheel-bearing replacement package for applicable Arctic Cat and Textron Wildcat XX models.

This package includes:

(2) Front AXACBR50 Lifetime Warranty Wheel Bearings

(2) Rear AXACBR50 Lifetime Warranty Wheel Bearings

(4) Bearings Total

Applicable Wildcat XX models use the same AXACBR50 wheel bearing in all four wheel positions.

Fitment

Fits applicable:

2018 Textron Off Road Wildcat XX

2019 Textron Off Road Wildcat XX

2020 Arctic Cat Wildcat XX

2021 Arctic Cat Wildcat XX

2022 Arctic Cat Wildcat XX

2023 Arctic Cat Wildcat XX

2024 Arctic Cat Wildcat XX

2025 Arctic Cat Wildcat XX

Includes applicable:

Wildcat XX

Wildcat XX LTD

Wildcat XX SE

Wildcat XX Black Hills Edition

Applicable EPS and special-edition configurations using Arctic Cat / Textron OEM wheel bearing 2402-412.

Position

Front

Driver Side

Passenger Side

Rear

Driver Side

Passenger Side

Complete four-corner wheel bearing replacement kit

Bearing Details

Axiom Part Number:

AXACBR50

Arctic Cat / Textron OEM Interchange:

2402-412

Bearing Cross Reference:

DAC509040

DAC50900040

Bearing Dimensions:

50mm ID × 90mm OD × 40mm Wide

Quantity:

(4) Bearings

Wildcat XX Bearing Configuration

Applicable Wildcat XX platforms use the same wheel bearing in both the front and rear.

Front Axle

(2) AXACBR50

Rear Axle

(2) AXACBR50

Complete Vehicle

(4) AXACBR50

This AXACBR50-4 package includes everything required to replace all four wheel bearings on applicable Wildcat XX models.

Bearing Features

Oversized Heavy-Duty Internals: Built to withstand extreme wheel loads, hard impacts, oversized tires, and demanding off-road use.

High-Capacity Bearing Geometry: Engineered for increased strength, consistent load control, and dependable performance under severe operating conditions.

Reduced Hub Deflection: Helps reduce unwanted wheel-end movement for improved steering response, braking consistency, and overall stability.

Built for High-Speed Off-Road Use: Designed for the suspension loads generated by desert riding, rocks, jumps, rough terrain, and aggressive driving.

Sealed Construction: Helps protect internal bearing components from dirt, mud, water, dust, and other contaminants commonly encountered in off-road environments.

Direct-Fit Replacement: Designed around the factory Wildcat XX wheel-bearing dimensions and OEM 2402-412 application.

Complete Four-Piece Package: Replaces both front and both rear wheel bearings at the same time.

Lifetime Warranty Coverage: All four bearings are backed by Axiom Supply's True No-Nonsense Lifetime Replacement Warranty.

Important Fitment Note

This 4-pack is intended specifically for applicable Arctic Cat / Textron Wildcat XX models using OEM wheel bearing 2402-412.

Before ordering, verify one of the following:

Existing wheel bearing is Arctic Cat / Textron 2402-412

Vehicle parts diagram specifies 2402-412

Existing bearing measures 50mm ID × 90mm OD × 40mm Wide

This package should not be assumed to fit earlier Wildcat 1000, Prowler, Havoc, Stampede, or other Arctic Cat / Textron platforms based solely on bearing appearance or brand.

Description

The Axiom Supply AXACBR50-4 Lifetime Warranty Wheel Bearing 4-Pack provides a complete front and rear wheel-bearing upgrade for the Arctic Cat and Textron Wildcat XX.

The Wildcat XX is built to be driven hard, and its wheel bearings are constantly exposed to severe operating conditions.

High-speed desert riding, long suspension travel, oversized tires, rocks, jumps, hard impacts, mud, water, and aggressive terrain place tremendous loads on the wheel-end assembly.

AXACBR50 is engineered as a heavy-duty replacement for Arctic Cat / Textron OEM 2402-412.

Built around the large 50mm ID × 90mm OD × 40mm wide bearing platform, each AXACBR50 uses high-strength internal components and performance-focused bearing geometry designed to maintain smooth rotation while controlling wheel and hub movement under demanding loads.

Reduced wheel-end movement helps provide improved steering accuracy, more consistent braking, and increased stability through rough terrain.

Because applicable Wildcat XX models use the same bearing at all four wheel positions, the AXACBR50-4 package allows you to replace the entire vehicle's wheel-bearing set at once.

Instead of replacing one worn bearing at a time, this kit gives you:

Two new front wheel bearings

and

Two new rear wheel bearings

Whether your Wildcat XX spends its time running high-speed desert terrain, crawling through rocks, hitting jumps, or pushing oversized tires through mud, this complete four-bearing package is built for the conditions that expose weaknesses in ordinary replacement bearings.

These aren't intended to be disposable maintenance parts.

They're heavy-duty wheel bearings backed by Axiom Supply's True No-Nonsense Lifetime Replacement Warranty.

If a bearing lets you down, we'll make it right.

WHY AXIOM SUPPLY

Complete front and rear wheel-bearing package

Four matching AXACBR50 bearings

Heavy-duty replacement for OEM 2402-412

50 × 90 × 40mm bearing platform

Front and rear compatible

Oversized high-strength internal components

Built for oversized tires and modified machines

Designed for high-speed and high-load UTV applications

Helps reduce excessive wheel and hub movement

Built for mud, water, rocks, hard impacts, and demanding terrain

All four bearings backed by a true Lifetime Replacement Warranty

Includes:

(4) Axiom Supply AXACBR50 Lifetime Warranty Wheel Bearings

Complete Front & Rear Set

SOLD AS A 4-PACK

The Axiom No-Nonsense Lifetime Warranty

Our applicable wheel-bearing components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don't care.

If the part lets you down, we will make it up to you!
