Axiom Supply Kawasaki Teryx KRX 1000 / KRX4 1000 Front Lifetime Warranty Wheel Bearing 2020 - 2026

Bearing Features:

Oversized Heavy-Duty Internals: Built to handle extreme loads, hard impacts, oversized tires, and demanding off-road use.

High-Capacity Bearing Geometry: Heavy-duty sealed ball bearing design engineered for increased strength, consistent load control, and long-term durability.

Reduced Hub Deflection: Helps improve braking performance, steering accuracy, and overall vehicle stability.

Built for Hard-Use KRX Applications: Engineered to withstand aggressive riding, high-speed terrain, mud, water, rocks, and oversized tires.

Lifetime Warranty Coverage: Designed as a long-term wheel-bearing upgrade and backed by Axiom Supply's True No-Nonsense Lifetime Replacement Warranty.

Fitment

This bearing is designed specifically as a FRONT wheel bearing for applicable Kawasaki Teryx KRX 1000 and KRX4 1000 models using Kawasaki OEM bearing 92045-0919.

Position: Front Driver or Passenger Side

Kawasaki Teryx KRX 1000

2020 Teryx KRX 1000
2021 Teryx KRX 1000
2022 Teryx KRX 1000
2023 Teryx KRX 1000
2024 Teryx KRX 1000
2025 Teryx KRX 1000
2026 Teryx KRX 1000 – Applicable Models

Includes applicable Base, eS, Trail Edition, Special Edition, Blackout Edition, Lifted Edition, and applicable premium and special-edition configurations.

Position: Front Left or Front Right

Kawasaki Teryx KRX4 1000

2023 Teryx KRX4 1000
2024 Teryx KRX4 1000
2025 Teryx KRX4 1000
2026 Teryx KRX4 1000

Includes applicable Base, eS, SE / Special Edition, Blackout Edition, Lifted Edition, and applicable premium configurations.

Position: Front Left or Front Right

Important 2026 KRX Fitment Note

Does NOT Fit 2026 KRX 1000 Rock Edition

The 2026 Teryx KRX 1000 Rock Edition uses a different, substantially larger wheel-bearing system.

The Rock Edition uses:

Kawasaki OEM 92045-1478

45mm ID × 84mm OD × 45mm Wide

at both the front and rear.

Do not use AXKAWBR40F on a 2026 KRX 1000 Rock Edition.

If you have a 2026 model, verify the Kawasaki OE bearing number before ordering.

Front vs. Rear KRX Bearing Guide

Standard KRX 1000 and KRX4 1000 platforms commonly use two different wheel-bearing widths.

FRONT

Axiom Part Number: AXKAWBR40F

Kawasaki OEM: 92045-0919

Dimensions:
40mm ID × 74mm OD × 36mm Wide

Position:
Front Driver / Front Passenger

REAR

Axiom Part Number: AXKAWBR40R

Kawasaki OEM: 92045-0920

Dimensions:
40mm ID × 74mm OD × 42mm Wide

Position:
Rear Driver / Rear Passenger

Important:

Although the front and rear bearings both measure:

40mm ID × 74mm OD

they are not the same bearing.

The front bearing is:

36mm Wide

The rear bearing is:

42mm Wide

The rear bearing is therefore 6mm wider than the front bearing.

Do not interchange the front and rear bearings based solely on ID and OD measurements.

Details:

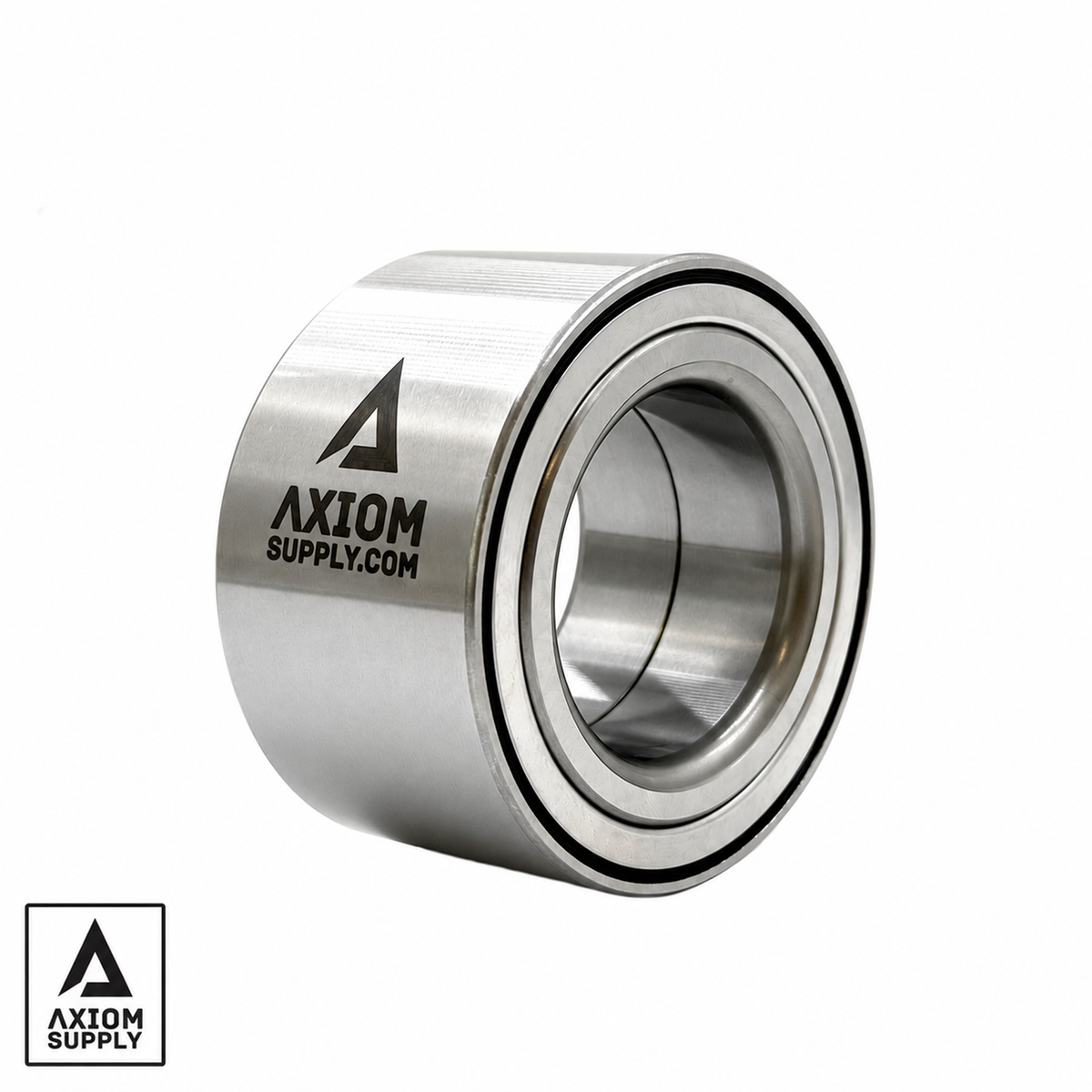

The Axiom Supply AXKAWBR40F Lifetime Warranty Wheel Bearing is designed as a heavy-duty replacement for the front wheel-bearing position on applicable Kawasaki Teryx KRX 1000 and KRX4 1000 models.

Replaces Kawasaki OEM:

92045-0919

Bearing Dimensions:

40mm ID × 74mm OD × 36mm Wide

Bearing Type:

Heavy-Duty Sealed Ball Bearing

Position:

Front Driver or Passenger Side

Quantity Required:

(1) bearing per front wheel

(2) bearings required to replace both front wheel bearings

Need the Matching Rear KRX Bearing?

The rear of applicable standard KRX 1000 and KRX4 1000 models uses a different wheel bearing.

Axiom Part Number: AXKAWBR40R

Kawasaki OEM: 92045-0920

Dimensions:
40mm ID × 74mm OD × 42mm Wide

Position:
Rear Driver / Rear Passenger

For a complete four-wheel bearing replacement on applicable standard KRX models:

Front: (2) AXKAWBR40F

Rear: (2) AXKAWBR40R

4 Bearings Total

Have a 2026 KRX Rock Edition?

The 2026 KRX 1000 Rock Edition uses the larger:

Axiom AXKAWBR45

45mm ID × 84mm OD × 45mm Wide

Replaces Kawasaki:

92045-1478

The Rock Edition uses the larger AXKAWBR45-style bearing at both the front and rear.

Important Fitment Note:

Kawasaki uses multiple wheel-bearing configurations across KRX models and trims.

Before ordering AXKAWBR40F, verify that your existing front bearing is Kawasaki 92045-0919, that the Kawasaki parts diagram specifies 92045-0919, or that your existing front bearing measures 40mm ID × 74mm OD × 36mm wide.

Do not confuse this bearing with:

92045-0920 – 40 × 74 × 42mm Rear Bearing

or

92045-1478 – 45 × 84 × 45mm Rock Edition / Newer Platform Bearing

For additional fitment assistance, please email Axiom Supply before ordering.

Description:

The Axiom Supply AXKAWBR40F Lifetime Warranty Front Wheel Bearing is built for Kawasaki KRX owners who demand more from their machine than an ordinary replacement bearing can provide.

Front wheel bearings take some of the hardest loads on a performance UTV. Steering forces, oversized tires, aggressive suspension travel, hard impacts, mud, water, rocks, and high-speed terrain all place significant stress on the front wheel-end assembly.

AXKAWBR40F is engineered as a true heavy-duty replacement for Kawasaki OEM 92045-0919.

Built with oversized, high-strength internals and performance-focused bearing geometry, this bearing is designed to control wheel and hub movement while maintaining smooth, consistent rotation under demanding conditions.

Reduced hub deflection helps provide sharper steering response, more consistent braking, and improved front wheel stability while minimizing unwanted movement and premature wear.

Whether your KRX spends its life crawling rocks, running high-speed desert terrain, tackling technical trails, or pushing oversized tires through mud, AXKAWBR40F is engineered for the conditions that expose weaknesses in ordinary replacement bearings.

This isn't intended to be another disposable maintenance part.

It's a heavy-duty front wheel-bearing upgrade backed by Axiom Supply's True No-Nonsense Lifetime Replacement Warranty.

If you're tired of replacing wheel bearings, this is designed to be the last one you'll install.

WHY AXIOM SUPPLY

Heavy-duty replacement for Kawasaki OEM 92045-0919

Designed specifically for applicable KRX front wheel positions

Oversized heavy-duty internal components

Built for oversized tires and high-load UTV use

Engineered for aggressive riding and harsh terrain

Helps reduce excessive wheel and hub movement

Improves steering and braking consistency

Built for mud, water, rocks, hard impacts, and extreme conditions

Direct-fit replacement for applicable Kawasaki applications

Backed by a true Lifetime Replacement Warranty

Proven under real off-road conditions

Includes:

(1) Axiom Supply AXKAWBR40F Lifetime Warranty Front Wheel Bearing

The Axiom No-Nonsense Lifetime Warranty

Our suspension, steering, and applicable wheel-bearing components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don't care.
If the part lets you down, we will make it up to you!
