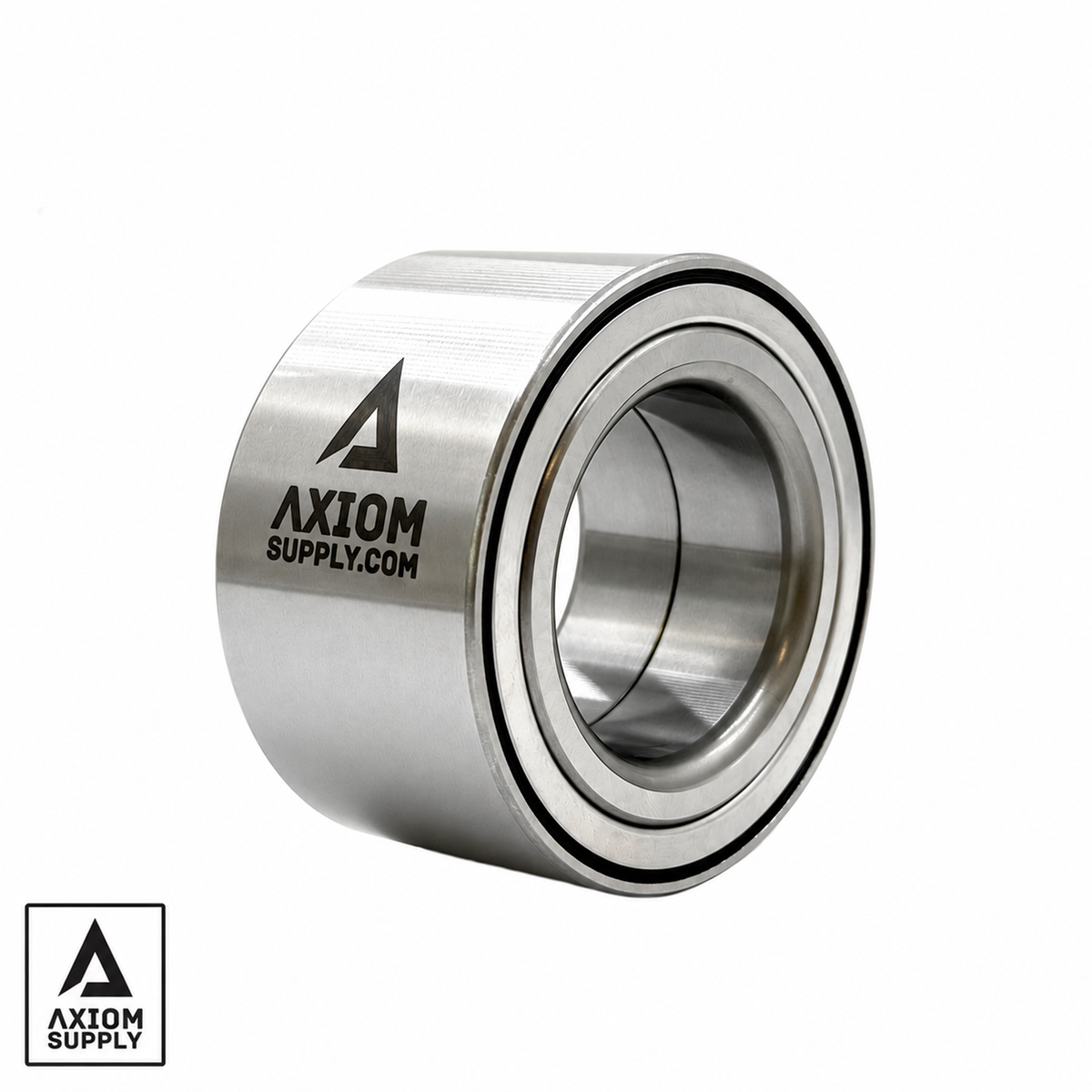

Axiom Supply Kawasaki Teryx KRX 1000 / KRX4 1000 Rear Lifetime Warranty Wheel Bearing 2020 - 2026

Bearing Features:

• Oversized Heavy-Duty Internals: Built to handle extreme loads, hard impacts, oversized tires, and demanding off-road use.

• High-Capacity Bearing Geometry: Heavy-duty sealed ball bearing design engineered for increased strength, consistent load control, and long-term durability.

• Reduced Hub Deflection: Helps improve braking consistency, wheel stability, and overall vehicle control.

• Built for Hard-Use KRX Applications: Engineered to withstand aggressive riding, high-speed terrain, mud, water, rocks, and oversized tires.

• Lifetime Warranty Coverage: Designed as a long-term wheel-bearing upgrade and backed by Axiom Supply's True No-Nonsense Lifetime Replacement Warranty.

Fitment

This bearing is designed specifically as a REAR wheel bearing for applicable Kawasaki Teryx KRX 1000 and KRX4 1000 models using Kawasaki OEM bearing 92045-0920.

Position: Rear Driver or Passenger Side

Kawasaki Teryx KRX 1000

Fits applicable:

• 2020 Teryx KRX 1000

• 2021 Teryx KRX 1000

• 2022 Teryx KRX 1000

• 2023 Teryx KRX 1000

• 2024 Teryx KRX 1000

• 2025 Teryx KRX 1000

• 2026 Teryx KRX 1000 – Applicable Models

Includes applicable:

• Base

• eS

• Trail Edition

• Special Edition

• Blackout Edition

• Lifted Edition

• Applicable Premium / Special-Edition configurations

Position: Rear Left or Rear Right

Kawasaki Teryx KRX4 1000

Fits applicable:

• 2023 Teryx KRX4 1000

• 2024 Teryx KRX4 1000

• 2025 Teryx KRX4 1000

• 2026 Teryx KRX4 1000

Includes applicable:

• Base

• eS

• SE / Special Edition

• Blackout Edition

• Lifted Edition

• Applicable premium configurations

Position: Rear Left or Rear Right

Important 2026 KRX Fitment Note

Does NOT Fit 2026 KRX 1000 Rock Edition

The 2026 Teryx KRX 1000 Rock Edition uses a different, larger wheel-bearing system.

The Rock Edition uses:

Kawasaki OEM 92045-1478

45mm ID × 84mm OD × 45mm Wide

at the front and rear.

Do not use AXKAWBR40R on a 2026 KRX 1000 Rock Edition.

Verify your Kawasaki OE bearing number before ordering if you have a 2026 model.

Front vs. Rear KRX Bearing Guide

Standard KRX 1000 and KRX4 1000 applications commonly use two different wheel bearings.

FRONT

Kawasaki OEM: 92045-0919

Dimensions:
40mm ID × 74mm OD × 36mm Wide

Position:
Front Driver / Front Passenger

REAR

Axiom AXKAWBR40R

Kawasaki OEM: 92045-0920

Dimensions:
40mm ID × 74mm OD × 42mm Wide

Position:
Rear Driver / Rear Passenger

Important:

Although both bearings have a 40mm ID and 74mm OD, they are not the same bearing.

The front bearing is approximately 36mm wide, while the rear bearing is 42mm wide.

Do not interchange the front and rear bearings based solely on ID and OD dimensions.

Details:

The Axiom Supply AXKAWBR40R Lifetime Warranty Wheel Bearing is designed as a heavy-duty replacement for the rear wheel-bearing position on applicable Kawasaki Teryx KRX 1000 and KRX4 1000 models.

Replaces Kawasaki OEM:

92045-0920

Bearing Cross Reference:

DAC40740042-ZZ

Bearing Dimensions:

40mm ID × 74mm OD × 42mm Wide

Bearing Type:

Heavy-Duty Sealed Ball Bearing

Position:

Rear Driver or Passenger Side

Quantity Required:

(1) per rear wheel

(2) bearings required to replace both rear wheel bearings

Need the Front KRX Bearing?

The front of applicable standard KRX 1000 and KRX4 1000 models uses a different wheel bearing:

Kawasaki OEM 92045-0919

40mm ID × 74mm OD × 36mm Wide

The two bearings share the same 40mm ID and 74mm OD, but the front bearing is 6mm narrower.

Always verify axle position before ordering.

Have a 2026 KRX Rock Edition?

The 2026 KRX 1000 Rock Edition uses the larger:

Axiom AXKAWBR45

45mm ID × 84mm OD × 45mm Wide

Replaces Kawasaki:

92045-1478

The Rock Edition uses this larger bearing at both the front and rear.

Important Fitment Note:

Kawasaki uses multiple wheel-bearing sizes within the KRX platform.

Before ordering AXKAWBR40R, verify one of the following:

• Existing rear bearing is Kawasaki 92045-0920

• Kawasaki parts diagram specifies 92045-0920

• Existing rear bearing measures 40mm ID × 74mm OD × 42mm wide

Do not confuse this bearing with:

92045-0919 – 40 × 74 × 36mm Front Bearing

or

92045-1478 – 45 × 84 × 45mm Rock Edition / Newer Platform Bearing

For additional fitment assistance, please email Axiom Supply before ordering.

Description:

The Axiom Supply AXKAWBR40R Lifetime Warranty Rear Wheel Bearing is built for Kawasaki KRX owners who demand more from their machine than an ordinary replacement bearing can provide.

The rear wheel bearings on a KRX take tremendous abuse. High horsepower, oversized tires, aggressive suspension travel, hard acceleration, mud, water, rocks, and repeated impacts all place heavy loads on the rear wheel-end assembly.

AXKAWBR40R is engineered as a true heavy-duty replacement for Kawasaki OEM 92045-0920.

Built with oversized, high-strength internals and performance-focused bearing geometry, this bearing is designed to control wheel and hub movement while maintaining smooth, consistent rotation under demanding conditions.

Reduced hub deflection helps maintain predictable braking, suspension performance, and rear-wheel stability while minimizing unwanted wheel-end movement and premature wear.

Whether your KRX spends its life crawling rocks, running desert terrain, pushing oversized tires, or fighting through deep mud, AXKAWBR40R is engineered for the conditions that expose weaknesses in ordinary replacement bearings.

This isn't intended to be another disposable maintenance part.

It's a heavy-duty rear wheel-bearing upgrade backed by Axiom Supply's True No-Nonsense Lifetime Replacement Warranty.

If you're tired of replacing wheel bearings, this is designed to be the last one you'll install.

WHY AXIOM SUPPLY

• Heavy-duty replacement for Kawasaki OEM 92045-0920

• Designed specifically for applicable KRX rear wheel positions

• Oversized heavy-duty internal components

• Built for oversized tires and high-load UTV use

• Engineered for aggressive riding and harsh terrain

• Helps reduce excessive wheel and hub movement

• Improves rear wheel-end stability under load

• Built for mud, water, rocks, hard impacts, and extreme conditions

• Backed by a true Lifetime Replacement Warranty

• Proven under real off-road conditions

Includes:

(1) Axiom Supply AXKAWBR40R Lifetime Warranty Rear Wheel Bearing

The Axiom No-Nonsense Lifetime Warranty

Our suspension, and wheel-bearing components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don't care.
If the part lets you down, we will make it up to you!
